(1) 油煙吸收率應大于95%,采用同誑導流圍護裝置。
(1) fume absorption rate should be greater than 95%, using the same use of diversion protection device.
(2) 圍護結構應配有鉸接式檢查門,以便于衛生清潔及觀察。
(2) the retaining structure should be equipped with articulated door to facilitate sanitation, cleanliness and observation.
(3)設備全部由不銹鋼制成,所有聯結處為防水、防蒸汽、防油煙。
(3) the equipment is made of stainless steel. All joints are waterproof, vapor proof and smoke control.
(4)風罩嵌入吊頂內,兩者之間設有不銹鋼裝飾板,用厚度1.2㎜的不銹鋼板制造,易拆卸,嵌入深度≥100㎜。
(4) the wind cover is embedded in the ceiling. There is a stainless steel decorative plate between them, which is made of stainless steel plate with a thickness of 1.2. It is easy to disassemble and the embedded depth is greater than 100.
(5)全部罩體用厚度大于1.0㎜的不銹鋼板制造.
(5) covering the whole body with a stainless steel plate thickness greater than 1 mm.
(6)通風管用1.0鍍鋅板制成，設有不銹鋼鐵風量調節閥。
(6) the ventilation pipe is made of 1 galvanized steel pla
tes, and a stainless steel iron air volume regulating valve is provided.
(7)照明設備是防濺,防水、內凹型的,分布于每1000㎜距離，并應將所有電線套于導管中，用接駁箱連接。照度裝置大于等于600lux,采用芝光管燈,統一的電力接口。
(7) the lighting equipment is splash proof, waterproof and concave. It is distributed at every 1000 distance. All wires should be sleeved in the conduit and connected to the junction box. The illumination device is greater than or equal to 600lux, the use of energy-saving Chicago neon lights, power unified interface.
(8) 風罩豎板帶有一體環繞的自排裝置,排放槽易于清洗油煙、蒸汽,排放管為不銹鋼制,并聯風罩的全自動自清潔裝置。
(8) the air cover vertical plate has a self discharging device with one one round, which is easy to clean the oil smoke and steam. The exhaust pipe is made of stainless steel and is fully automatic self cleaning device in parallel to the wind hood.

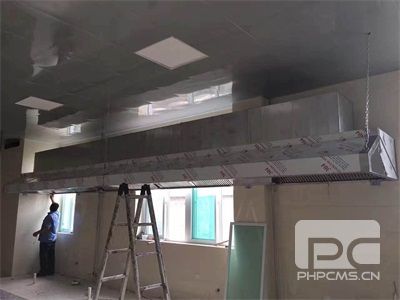

排煙罩適用于飯店，賓館，食堂，酒店，餐飲，各廚房用，上面標注的為一平方（長×寬）的，長度可定做，板材為不銹鋼板，也可根據客戶要求尺寸進行定做。
The exhaust hood is suitable for hotels, hotels, canteens, hotels, restaurants, and kitchens. The price is a square (long, wide) price, the length can be fixed, the plate is a high quality stainless steel plate, and it can also be made according to the requirements of the customer.
